تفاصيل المنتج:
|
| اسم: | آلة الجر محرك حزام المصعد | حمولة: | 320 كجم ~ 1000 كجم |
|---|---|---|---|
| سرعة: | 0.5 ~ 1.5 م/ث | نسبة الجر: | 2: 1 |
| حمولة ثابتة: | 1500 كجم | الجهد االكهربى: | 220V/380V |
| وقت الضمان: | 12 شهرا | طلب: | المصعد |
| نموذج: | آلة الجر محرك حزام المصعد | يكتب: | آلة الجر محرك حزام المصعد |

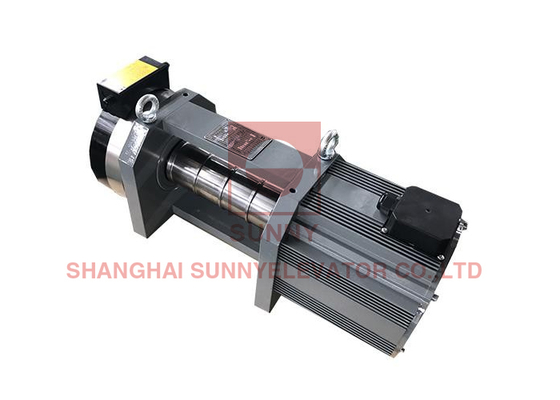

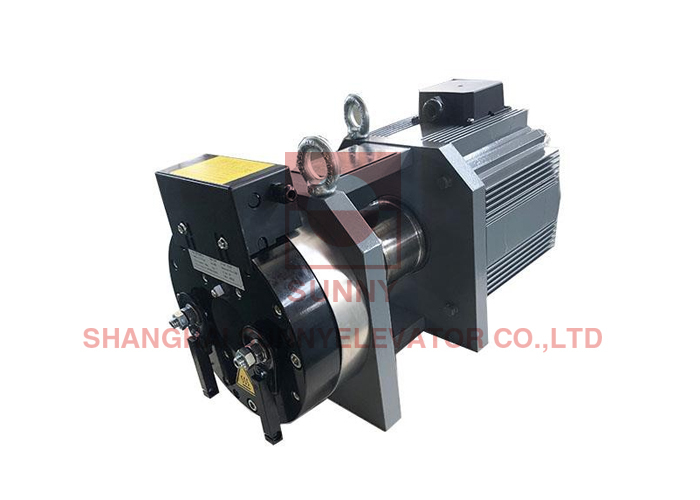

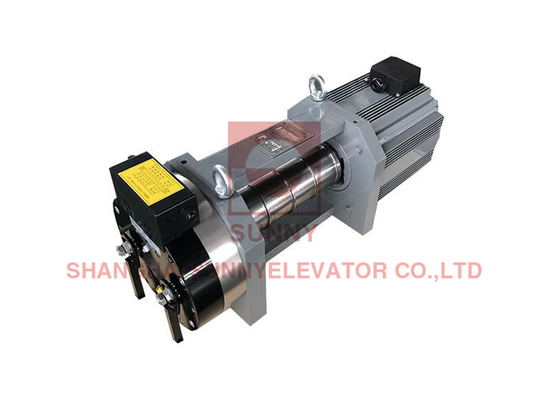

320kg~1000kg Elevator Belt Drive Gearless Traction Machine Steel Belt Traction Machine
Quality elevator steel belt gearless traction machine with CE certificate
| Load:320kg~1000kg | Voltage:220V/380V | IP Code: IP41 |
| Speed:0.5~1.5 m/s | Brake Vol: DC110V | INS.Class: F |
| Roping:2:1 | Static Load:5000kg | Poles: 16 |
SN-KA100 Series Direct drive Machine Drum Traction Machine Specification
| Type |
Load (P+Q) |
Lift Speed [m/s] |
Drum | |||||||||
| Diam [mm] |
Groove | Power [kW] |
Torque(Nm) | Speed [r/min] |
Current [A]-220V |
Current [A]-380V |
Freq [Hz] |
Poles | ||||
| SN-KA100 | 320 | 0.5 | 100 | 2×30-65 | 1.2 | 62 | 191 | 7 | 5 | 25.6 | 16 | |
| 1.0 | 100 | 2.5 | 382 | 9 | 6 | 51.2 | 16 | |||||
| SN-KA100 | 400 | 0.5 | 100 | 2×30-65 | 1.4 | 70 | 191 | 8 | 5 | 25.6 | 16 | |
| 1.0 | 100 | 2.8 | 382 | 10 | 7 | 51.2 | 16 | |||||
| SN-KA100 | 450 | 0.5 | 100 | 2×30-65 | 1.6 | 80 | 191 | 7 | 5 | 25.6 | 16 | |
| 1.0 | 100 | 3.2 | 382 | 12 | 8 | 51.2 | 16 | |||||
| SN-KA100 | 630 | 0.5 | 100 | 2×30-65 3×30-65 |
2.2 | 110 | 191 | 8 | 6 | 25.6 | 16 | |
| 1.0 | 100 | 4.4 | 382 | 15 | 9 | 51.2 | 16 | |||||
| 1.5 | 100 | 6.6 | 573 | 23 | 15 | 76.8 | 16 | |||||
| SN-KA100 | 800 | 1.0 | 100 | 3×30-65 | 5.4 | 135 | 382 | 19 | 11 | 51.2 | 16 | |
| 1.5 | 100 | 4×30-65 | 8.1 | 573 | 29 | 18 | 76.8 | 16 | ||||
| SN-KA100 | 1000 | 1.0 | 100 | 3×30-65 | 6.8 | 170 | 382 | 24 | 14 | 51.2 | 16 | |
| 1.5 | 100 | 4×30-65 | 10.2 | 573 | 36 | 23 | 76.8 | 16 | ||||
