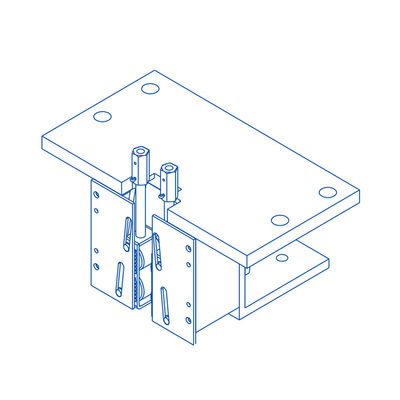

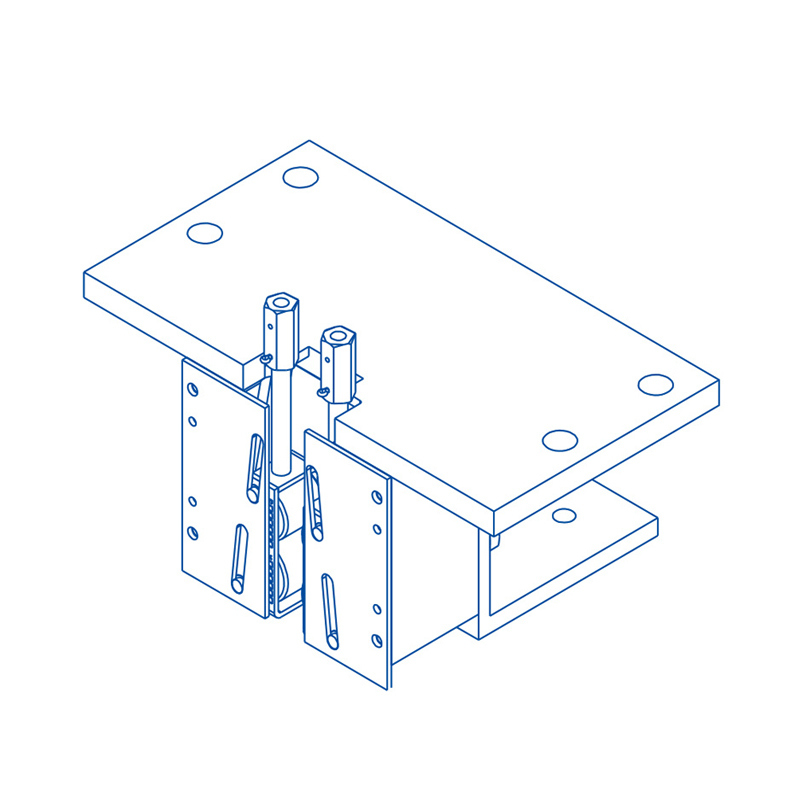

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear
≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

صورة كبيرة :  ≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: SUNNY
إصدار الشهادات: CE,ISO9001
رقم الموديل: سن-سغ-QS8A
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 أجهزة كمبيوتر
الأسعار: $50~100
تفاصيل التغليف: في علبة كرتون
وقت التسليم: 7 ~ 15 يومًا
شروط الدفع: L/C ، T/T ، Western Union
القدرة على العرض: 5000 قطعة / شهر

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear

وصف
اسم: معدات السلامة الفورية السرعة المقدرة: ≤0.63 م / ث
P+Q.: ≥12000 كجم عرض قضبان الدليل: 15.88/16/19 ملم
نموذج: معدات سلامة المصعد مستخدم: أجزاء المصعد
شهادة: غيغابايت وقت الضمان: سنة واحدة
يكتب: معدات السلامة الفورية منتج: معدات السلامة الفورية

≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear



Parameter Table



Product Model

Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Mass

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Overall Dimensions

(Fixed Installation) mm

Input Power

SN-SG-QS8 ≤0.63 ≤1.00 ≤12000 15.88/16 GB Dry/Lubricated 200x265x148
SN-SG-QS8A ≤0.63 ≤1.00 ≤13000 19 GB Dry/Lubricated 200x265x148



≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 0



≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 1



≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 2≤0.63M/S Rated Speed Elevator Spares Elevator Instantaneous Safety Gear 3



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
