Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear

Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear
Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear

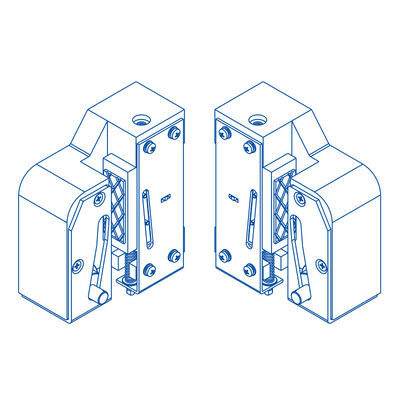

صورة كبيرة :  Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear

تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: SUNNY
إصدار الشهادات: CE,ISO9001
رقم الموديل: سن-سغ-NS02A
شروط الدفع والشحن:
الحد الأدنى لكمية: 1 قطعة
الأسعار: $50~100
تفاصيل التغليف: في علبة كرتون
وقت التسليم: 7 ~ 15 يومًا
شروط الدفع: L/C ، T/T ، Western Union
القدرة على العرض: 5000 قطعة / شهر

Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear

وصف
الاسم: معدات السلامة التقدمية السرعة المقدرة: 0.25-2.50 م/ث
P+Q.: 575-2800 كجم عرض قضبان الدليل: 9/10/14/15.88/16 مللي متر
نموذج: معدات السلامة التقدمية مستخدم: أجزاء المصعد
شهادة: سي / جيجابايت / شرق أفريقيا وقت الضمان: سنة واحدة
يكتب: معدات السلامة التقدمية منتج: معدات السلامة التقدمية

Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear



Parameter Table



Product Model

Rated Speed

(m/s)

Acting Speed of Governor

(m/s)

System Quality

Permitted P+Q

(kg)

Rail Width

(mm)

Certification Rail Status

Dimensions

(Fixed Installation) mm

SN-SG-NS02A 0.25-2.50 0.29-3.22 575-2800 9/10/14/15.88/16 GB/CE/EAC Dry/Lubricated 147.5×119×62
SN-SG-NS02B 0.25-2.50 0.29-3.22 2700-3500 9/10/15.88/16 GB Dry/Lubricated 165×131×65



Interface Table

Serial No.

Safety Clamp Code

Type



A



B



C



D

1 SN-SG-NS02A 147 119 62 M12
2 SN-SG-NS02B 158 131 65 M16





Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear 0



Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear 1



Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear 2



Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear 3



Lift Safety Devices Rail Width 9/10/14/15.88/16mm Elevator Progressive Safety Gear 4



FAQ
1. Are the elevator wire ropes durable?
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
2. Is it dangerous for power failure suddenly during the elevator running?
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
3. Will us be hurt when it closed suddenly?
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
4. How the elevator running?
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
5. Is the escalator installation complicated?
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
6. Do you have any cerifications?
Yes, we do with ISO9001 / CCC / CE Certificates for u.
