تفاصيل المنتج:
|

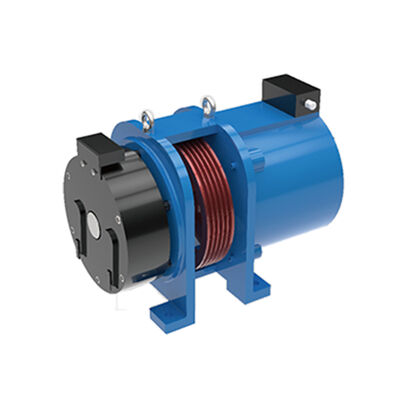

| اسم المنتج: | آلة الجر المصعد | سرعة: | 0.5 ~ 1.75 م / ث |
|---|---|---|---|
| حمولة: | 450-630 كجم | نموذج: | آلة الجر المصعد |
| يكتب: | آلة الجر المصعد | الشد: | 2:1 |
| الجهد (الخامس): | 380 | الكبح عزم الدوران: | >1280 |
| الحالي (أ): | 2.1 | الملعب (مم): | 12 |
| type | Load (kg) | Speed (m/s) |
Roping | Rise(m) | Motor Parameter | Brake Parameter | Sheave Parameter | ||||||||||
| Rated power (kW) |
Rated Torque (N.m) |
Rated Speed (RPM) | Rated Frequency (Hz) |
Rated Current (A) |
Voltage (V) |
Current (A) | Voltage (V) | Braking Torque (N.m) | nxd(mm) | Pitch (mm) |
β | γ | |||||
| MY06-450D/050P | 450 | 0.5 | 2:1 | ≤30 | 1.5 | 230 | 60 | 12 | 3.3 | 380 | 2.1 | DC110 | ＞1280 | 4-Φ8 | 12 | 95 | 30 |
| MY06-450D/100P | 1 | ≤50 | 3 | 119 | 23.8 | 6.8 | |||||||||||
| MY06-630D/050P | 630 | 0.5 | ≤30 | 2 | 320 | 60 | 12 | 4.8 | 5-Φ8 | 12 | 95 | 30 | |||||
| MY06-630D/100P | 1 | ≤50 | 4 | 119 | 23.8 | 9.2 | |||||||||||
| MY06-630D/150P | 1.5 | ≤75 | 6 | 179 | 35.8 | 14 | |||||||||||
| MY06-630D/175P | 1.75 | ≤90 | 7 | 209 | 41.8 | 16.5 | |||||||||||
The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considered the size of the traction, as a result, the tensile strength of wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire rope. So it won’t break at the same time.
If it occurs, the elevator will automatically stop due to the electrical and mechanical safety device. In case of power failure,elevator brakes will automatically taken. In addition, the power supply departments such as planned outage, prior notice are also operating.
In the closing process, if people touch the hall door, the door of elevator will automatically restart without any danger. With anti clamping switch, once the gate touched, this switching action make the elevator unable to be closed and even reopened. In addition, closing force is also available here.
Elevators are operated with a counterweight wire rope through the (tractor) traction drive, making ups and downs on the guide rail.
We believe the functions of an escalator are not necessarily proportional to the operation complexity. Therefore, escalators designed by us apply an integrated structure, so that the equipment is more precise and more efficient and allows easier and more convenient commissioning.
Yes, we do with ISO9001 / CCC / CE Certificates for u.
